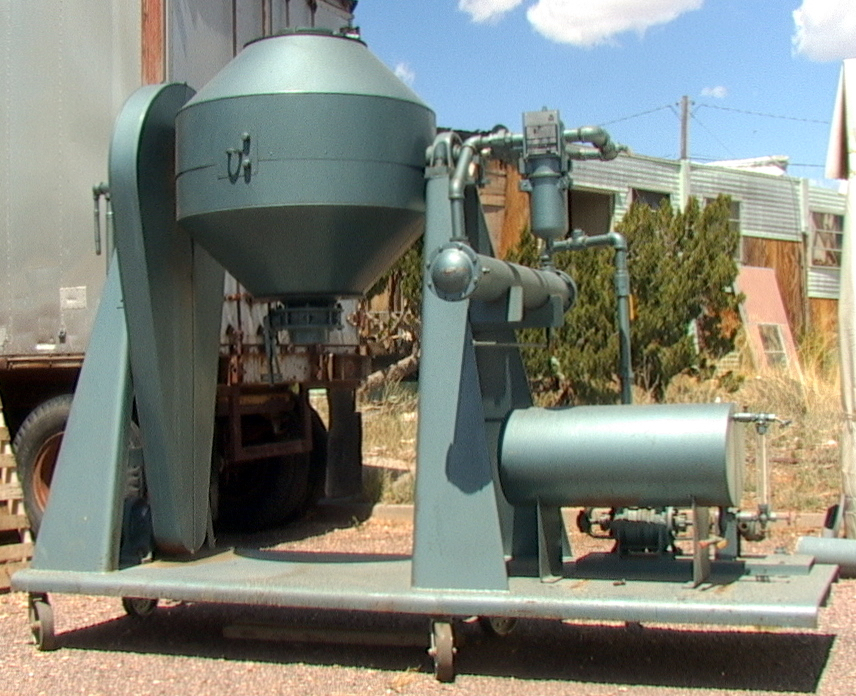

Paul Abbe Explosion Proof ROTA-CONE VACUUM DRYER 36 RCD

DESCRIPTION:

This is a very nice explosion-proof double-cone vacuum evaporator designed to dry or remove moisture from friable or temperature-sensitive bulk materials. While this unit is not shown in the current factory products chart, from past information it has 8.1 cubic feet of working volume with 13.5 cf of total volume.

New replacement cost on this unit is approximately $40,000.

FEATURES:

Manufactured by Paul O Abbe in USA

Model 36 RCD

Serial number A34025

8.1 cubic feet of working volume with 13.5 cf of total volume

Explosion-proof hydraulic motor driven rotation

Double cone mixing design

Temperature Control Chamber Jacket

8" top hole and 6" bottom hole with valve

H1840 SM CYCLO 87:1 gear reduce hydraulic motor drive

Type 500 Basco heat exchanger

Top cap plate with safety pressure relief

Consler HKV 115 vacuum pump oil filter

Rated to 80/40 psi and 325 degrees F

8" diameter top port with cover, 6" center bottom outlet

Includes explosion-proof hydraulic motor-driven Kinney KLRC-25-S vacuum pump and tank

CA Inventory # 5980
